Location:Chinese Academy of Sciences > Products > Carbon Nanotubes MWCNTs

Aligned Multi-walled carbon nanotubes (TNAIM):
Product Code:TNAIM

Technical Data of TNAIM (pdf) ( Download )

Product Description:

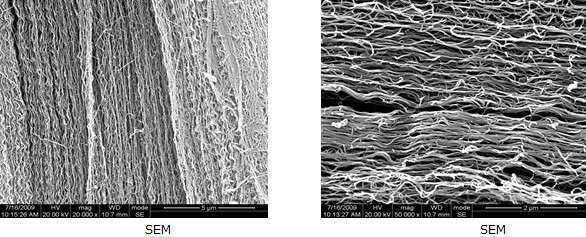

Timestub^TM ---Aligned Multi-walled carbon nanotubes---This kind of product (TNAIM) gathered in bundles, and most of the nanotubes arrayed in same direction. The bundle length often reaches 30-50 microns.

Property	Unit	Aligned MWCNTs	Method of Measurement
Property	Unit	TNAIM	Method of Measurement
OD	nm	8-15	HRTEM,Raman
Purity	wt%	>98	TGA & TEM
Length	microns	30-50	TEM
SSA	m²/g	200-250	BET
ASH	wt%	<2	TGA
Ig/Id	--	--	Raman
OD=Outer Diameter ID=Inner Diameter SSA=Specific Surface Area
